Designing with tape at Ford

Automotive Design 13 Feb 2014
Designing with tape at Ford

Ford has released an official video and document that explains how tape is used by designers to define styling lines on clay models and to create full-size drawing for design evaluation.



Tape is a critical tool in the design process that leads to development of any new vehicle. It provides precision and a life-size visual that cannot be replicated, despite advancements in digital technology.

The video reported below, titled “Language of Tape” includes footage from the design process of the 2015 Mustang and interviews with Ford Exterior Design Managers Kemal Curic and Garen Nicoghosian and Ford Master Modeler Larry Pelowski.

The design process of a vehicle is a long and artistic journey that begins with designers sketching ideas on paper. From there, the team moves to scaled-down clay models and 3D CAD drawings, eventually milling full-size clay vehicles to analyze body styling options.

Designing with tape on clay models

Clay is the ideal material for vehicle models as it allows the modelers to carve away or add lines and accents. Ford designers refine the surface language to make a vehicle that is appealing to customers.

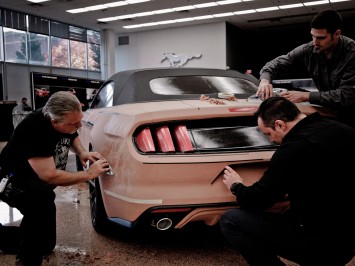

Ford Designer Kemal Curic - Tape on 2015 Mustang clay model

As clay prototypes of new vehicles are created, designers take tape to the malleable material to show modelers the lines they want perfected on the car. Designers and modelers use tape this way to communicate with each other throughout the design process of all Ford cars and trucks.

“Great design is about proportions,” said Kemal Curic, Ford exterior design manager. “From the beginning, we need to focus on creating the right structural lines – the skeleton of the car. Then our job is to tailor the vehicle body to enhance the figure. This is a process of editing every single line to find the perfect balance of concave and convex angles. We achieve this on the clay model, and tape is what we use to decide which lines to move.”

Ford Vertrek Tape on clay model

For vehicle designers, tape is its own language. Even with modern 3D digital imaging, automakers still rely on clay to sculpt and mold vehicles as the design develops. Tape brings a measure of precision to a process that results in a life-size 3D visual that cannot be duplicated on a computer screen, complementing the digital process.

“Tape gives us a defined line that is like a carpenter laying a level line on a building,” said Larry Pelowski, Ford master modeler, exterior design. “So when the designers put tape on the model, there is no question what their intent is.”

Tape offers both precision and artistry unmatched by other tools, said Pelowski. He explains it is a flexible material that can be retaped over and over again until the designers find the line they want to pursue. A tape line maintains the integrity of the width of the line; this is especially important when drawing a line with an arch that might otherwise be difficult to keep at a consistent size.

Full-size tape drawings

Artistry with tape is not a new phenomenon; auto designers once drew entire vehicles with the malleable adhesive.

Ford Escort Concept - Tape Drawing

“Tape was the medium of choice for creating life-size drawings,” said Garen Nicoghosian, Ford exterior design manager.

“They’d stretch Mylar on large boards and do a full-size tape drawing, which captured the essence of the car. The idea of tape drawings has evolved over time; we’ve integrated digital media now, and have technology that allows us to view full-size models based on CAD data, on very large display screens.

2015 Ford Mustang - Virtual Reality - Alias CAD model

“In the past, tape was used because it was the first opportunity to see a full-size vehicle, it was the best way to draw accurate lines on a 1:1 scale.

1971 Mustang II - Tape Drawing

“Today, the artistry of tape continues, but we use it primarily on clay models,” he adds.

How much tape does Ford use every year? Plenty. If one were to stretch the black tape used on clay models by the Ford design team, there’d be about 155 miles of tape a year.

(Source: Ford)

Image Gallery

Designing with tape at Ford - Image 1
Designing with tape at Ford - Image 2
Designing with tape at Ford - Image 7
Designing with tape at Ford - Image 4
Designing with tape at Ford - Image 3
Designing with tape at Ford - Image 5
Designing with tape at Ford - Image 6
Designing with tape at Ford - Image 8

Related Stories

Interview with Mustang designer Kemal Curić

Interview with Mustang designer Kemal Curić

An exclusive interview with Kemal Curić, designer of the latest Ford Mustang generation, who gives some insights on the development of the iconic muscle car.
Ducati Design Experience: a summer full immersion course by Ducati and IAAD

Ducati Design Experience: a summer full immersion course by Ducati and IAAD

IAAD and Ducati have organized the first edition of “Ducati Design Experience“, a full immersion course that will take place from 15 to 26 July 2019.
2018 Ford Mustang: design gallery

2018 Ford Mustang: design gallery

For the launch of the 2018 Mustang Ford has released a set of design sketch renders by designer Christopher Stevens.

Comments

Leave a Comment

  1. aflo
    14/2/2014

    At GM and later at Nissan, we always did our tape drawings on gridded vellum, stapled to large wooden boards which were counterbalanced on tracks and could be raised up easily (saves the knees and back).
    Tape is a great medium, especially for students who may not be able to afford the technology of powerwalls, etc. One can develop the design in quarter scale (or whatever size desired) and the tape is usually done over an engineering layout drawing – with the manikins, engine, other requirements, etc. – so the initial clay model centerline and sections can be relatively accurate to the package.
